inTENSity IF COMBO (IFC and TENS)
L1/244-C
- In stock, ready to ship
- Backordered, shipping soon
The InTENSity™ IF Combo combines TENS and Interferential electrotherapy modes to give you the best chance of treating patients that may need something stronger than a standard TENS unit. The IF Combo has 4 modes of Tens and 4 modes of Interferential, ensuring that your patient is getting the most pain relief. The unit is 105 mA strong and comes complete with an AC adapter to allow patients to get relief anywhere.
Product Features:
- Simple to operate, portable device for pain management
- Combines TENS and Interferential (IF) treatment for patients needing stronger therapy
- Indications For Use: Symptomatic chronic pain, acute post-traumatic or post-surgical pain
- Channel: Dual, isolated between channels
- Power Source: Standard 9-volt battery, or AC adapter (100-240V)
- Dimensions: 4.5” x 2.55” x 0.9”
- Weight: 0.28 lbs. with battery
- Timer: Adjustable from 1-60 minutes, or (C) for Continuous use
- Electrode Detection Function:
- Amplitude level will be reset to 0mA when it reaches 12mA or greater and an open circuit at either channel is detected.
- Optimal electrode placement is about 2-3 inches apart.
- One Year Manufacturer Warranty

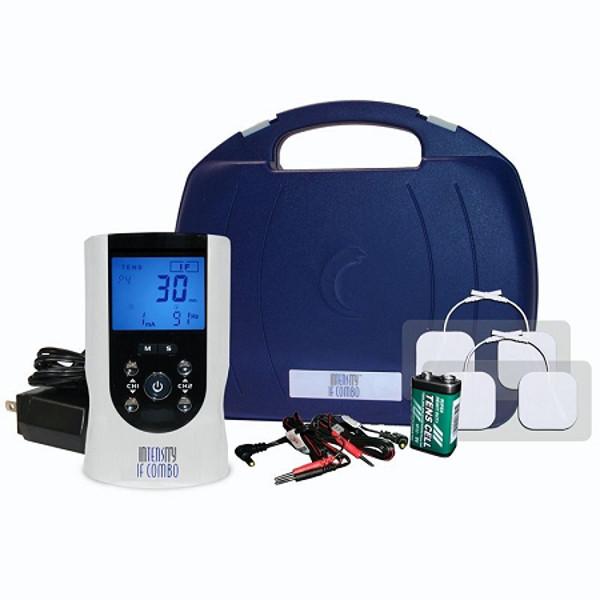

- Package Includes Everything Needed To Begin Treatment Right Away:
- 1x InTENSity IF Combo Device
- 2x Lead wires
- 1x package of self adhering electrodes
- 1x 9V Alkaline Battery
- 1x AC Adapter
- Instruction Manual
- Hard Plastic Carrying Case
Technical Specifications:
- Wave Form
- TENS: Monophasic Square
- Interferential: Biphasic Square
- Pulse Rate
- TENS: 1-150 Hz
- Interferential: 4kHz
- Pulse Width
- TENS: 50-300µs
- Interferential: 125µs, Phase duration: 250µs
- Output Voltage
- TENS: Constant Current
- Interferential: Constant Current
- Current
- TENS: 0-105mA
- Interferential: 0-105mA
- Modes
- TENS: 4 treatment modes
- Burst (P1)
- Normal (P2)
- Pulse Width Modulation (P3)
- Pulse Rate Modulation (P4)
- Interferential: 4 treatment modes
- (Refer to Instruction Manual for full details)
- Timer
- TENS: 1-60 minutes, or Constant
- Interferential: 1-60 minutes, or Constant
-
Frequency: 1-50 Beats
Placement of Electrodes:
- The placement of the electrodes is very important to the success of the treatment, therefore please place electrodes according to the instructions of your treating physician.
-
When operating in a 4-Pad treatment mode, the electrodes should be placed on the body as described in the diagram below. The arrangement of these 4 electrodes will allow the intersection of the 2 sinusoidal outputs, which will result in the required beat frequency. In a 2-Pad treatment mode, 2 separate pairs of electrodes can be used simultaneously to treat two different body regions.
